Trailer Axle Guide: How to Choose the Right Axles for Your Trailer
Trailer axles are one of the most important components of any trailer. They support the trailer and its cargo, connect the wheels and suspension to the frame, and play a major role in how much weight a trailer is designed to carry.
Whether you're buying an enclosed cargo trailer, car hauler, race trailer, motorcycle trailer, contractor trailer, or custom trailer, understanding axle ratings can help you choose a trailer that fits the way you plan to use it.
This guide explains the differences between common 3,500 lb, 5,200 lb, and 7,000 lb trailer axles, along with single, tandem, and triple-axle configurations, torsion and leaf-spring suspension, spread axles, trailer brakes, and axle capacity.
What Is a Trailer Axle?
A trailer axle is the structural assembly that supports the trailer and connects its wheels to the suspension system.
Trailer axles are manufactured with specific weight ratings. Common axle ratings found on enclosed and cargo trailers include:
The axle rating represents the maximum load the axle is designed to support under its specified configuration.
However, axle capacity and trailer GVWR are not necessarily the same thing.
A trailer's GVWR is established by the trailer manufacturer and considers the complete trailer design and its components. Never assume a trailer's allowable weight simply by adding together its axle ratings.
These are general examples. Always verify the manufacturer's specifications and GVWR for the individual trailer.

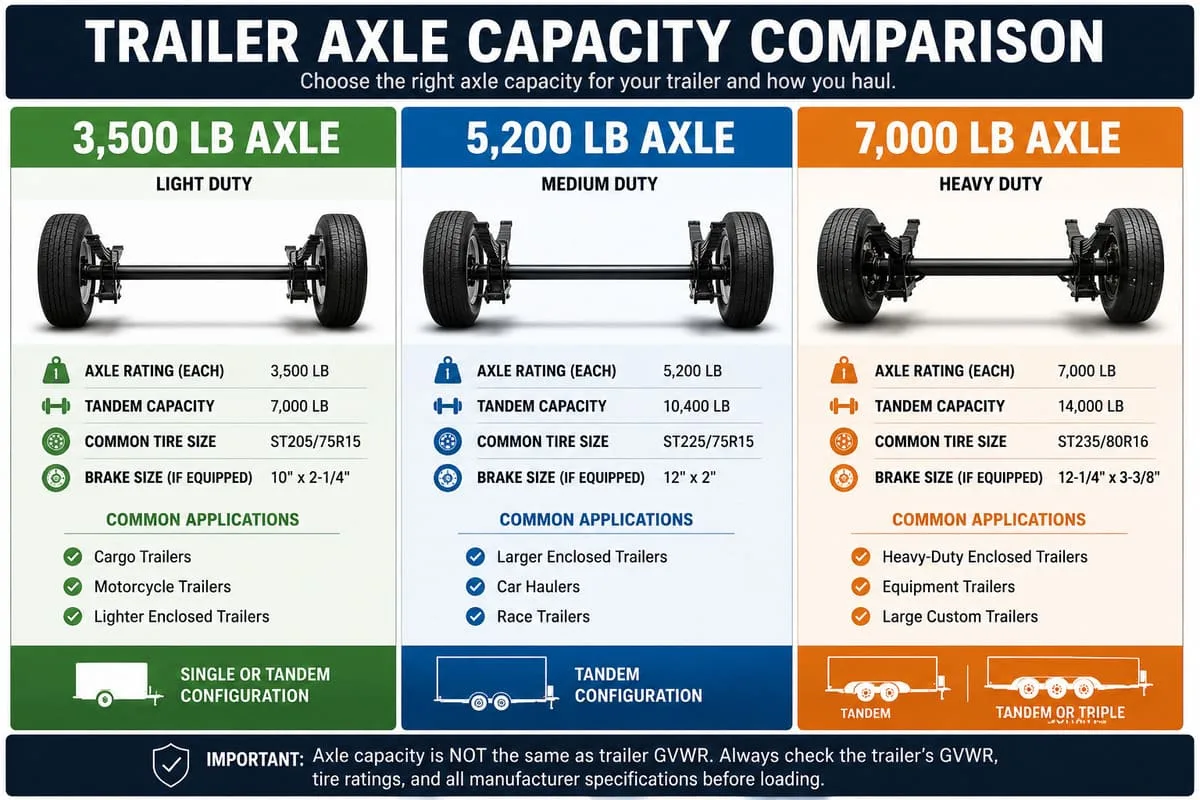

3,500 LB TRAILER AXLES
The 3,500 lb axle is one of the most common axle sizes used on enclosed cargo trailers.
You'll often find 3,500 lb axles on smaller single-axle trailers as well as tandem-axle cargo trailers.
A tandem trailer equipped with two 3,500 lb axles has 7,000 lbs of combined axle capacity, but that does not automatically mean the trailer has a 7,000 lb GVWR or can carry 7,000 lbs of cargo.
3,500 lb axles are commonly found on:
- Enclosed cargo trailers
- Motorcycle trailers
- Smaller contractor trailers
- Utility trailers
- Lighter tandem-axle trailers
They can be an excellent choice when the trailer does not need the additional capacity and heavier components associated with larger axles.
5,200 LB TRAILER AXLES
For larger enclosed trailers and car haulers, 5,200 lb axles are a popular upgrade.
Two 5,200 lb axles provide a combined axle rating of 10,400 lbs.
These axles are commonly found on larger tandem-axle enclosed trailers where additional carrying capacity and heavier-duty running gear are desired.
Common applications include:
- 8.5-wide enclosed trailers
- Car haulers
- Race trailers
- Contractor trailers
- Heavier cargo trailers
- Custom enclosed trailers
For buyers planning to transport vehicles, tools, equipment, or heavier cargo, upgrading from 3,500 lb to 5,200 lb axles may make sense depending on the trailer's overall specifications and intended use.
7,000 LB TRAILER AXLES
7,000 lb trailer axles are commonly used for heavier-duty applications.
A tandem trailer equipped with two 7,000 lb axles provides 14,000 lbs of combined axle capacity.
These heavier axles may be found on large enclosed trailers, equipment trailers, heavy-duty car haulers, and other trailers designed for substantial loads.
Common applications include:
- Heavy-duty enclosed trailers
- Large car and equipment haulers
- Heavy contractor trailers
- Large custom trailers
- Commercial applications
- Some tandem and triple-axle trailers
The right axle size should always be determined by the trailer manufacturer's specifications and the weight you actually intend to transport.

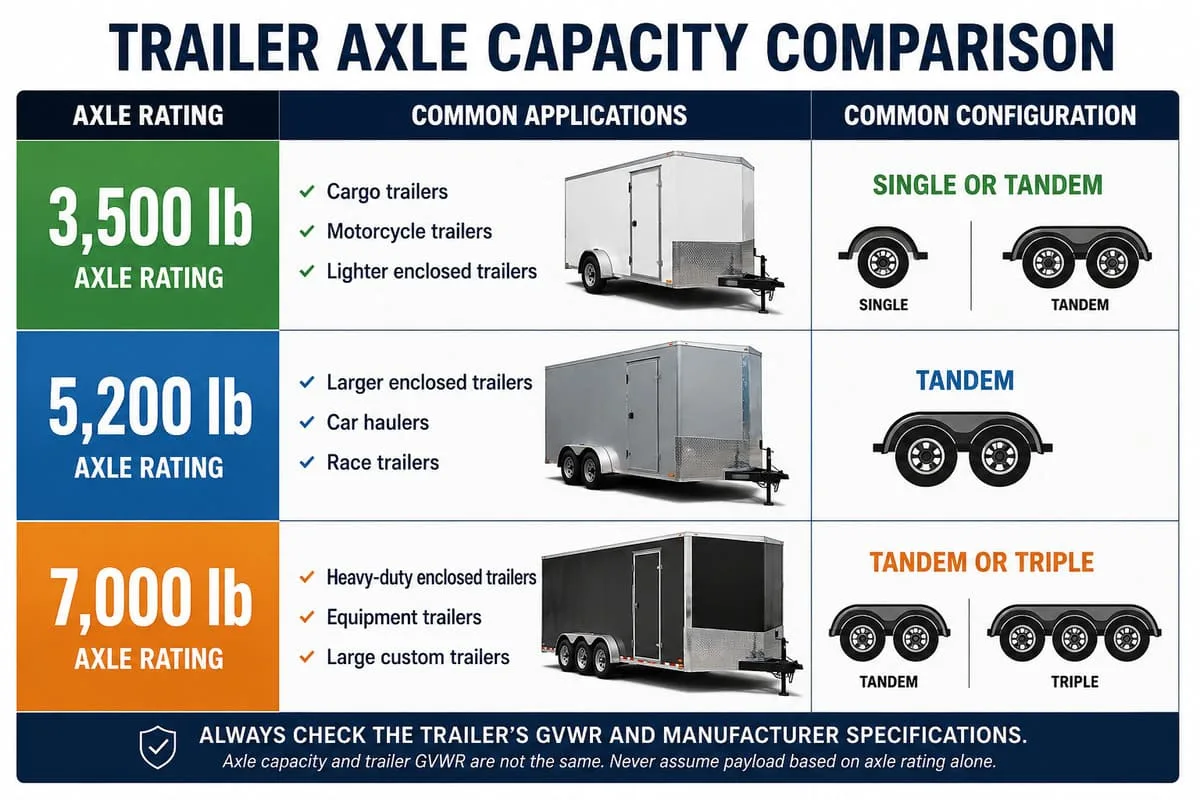

Single Axle vs. Tandem Axle vs. Triple Axle Trailers
The number of axles is another major consideration when choosing a trailer.
Single-Axle Trailers
A single-axle trailer has one axle.
These trailers are generally smaller, lighter, and easier to maneuver.
Single-axle configurations are commonly used for:
- Small cargo trailers
- Motorcycle trailers
- Light utility applications
- Smaller loads
Tandem-Axle Trailers
A tandem-axle trailer uses two axles.
Tandem axles are extremely common on medium and large enclosed trailers because they allow the trailer's load to be distributed across additional wheels and running gear.
Tandem axles are commonly found on:
- 7-wide enclosed trailers
- 8.5-wide enclosed trailers
- Car haulers
- Race trailers
- Contractor trailers
- Concession trailers
- Larger motorcycle trailers
Triple-Axle Trailers
A triple-axle trailer uses three axles.
Triple-axle configurations are generally reserved for larger or heavier trailers where the design requires additional capacity.
They are commonly seen on:
- Extra-long enclosed trailers
- Heavy-duty race trailers
- Large custom trailers
- Commercial applications

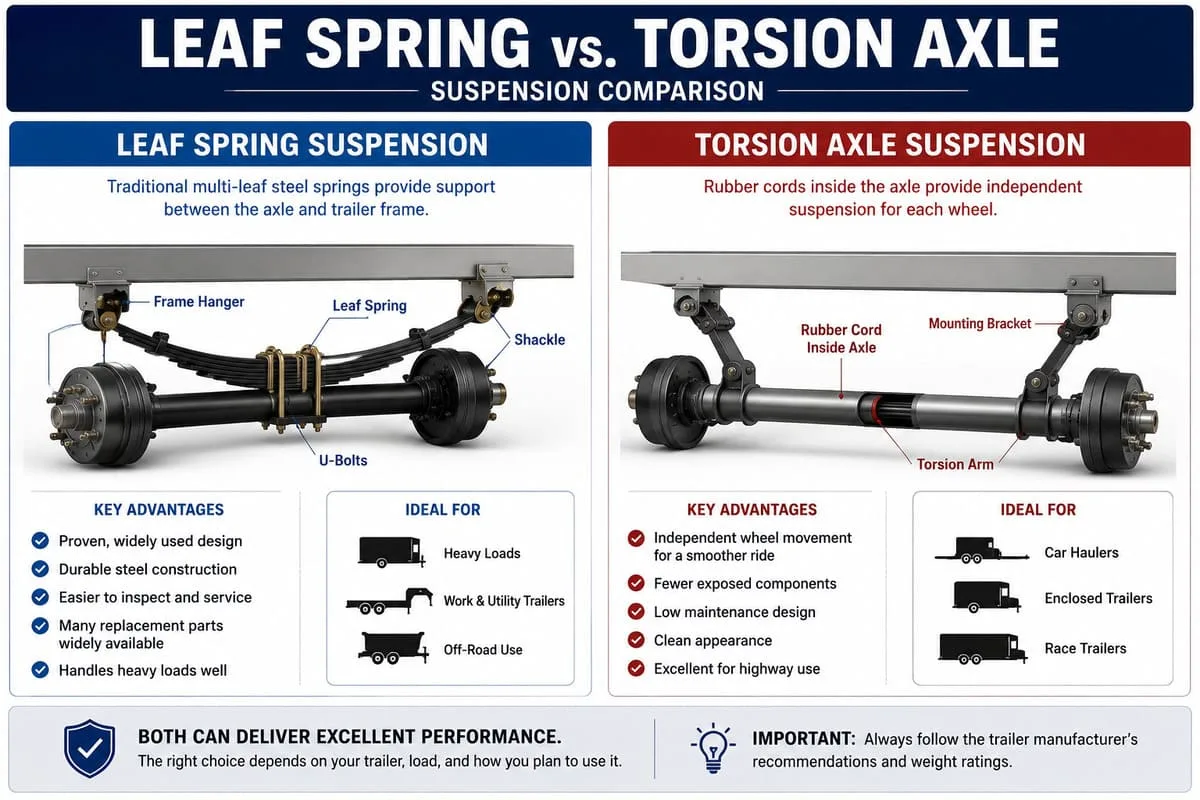

Torsion Axles vs. Leaf Spring Axles
Two common trailer suspension designs are torsion axles and leaf-spring axles.
Both can work well when properly matched to the trailer.
Leaf Spring Suspension
Leaf-spring suspension uses steel spring assemblies between the axle and trailer frame.
Advantages can include:
- Proven design
- Widely available replacement components
- Straightforward servicing
- Common on many trailer types
On tandem trailers, leaf springs may be combined with an equalizer system that helps distribute loads between the axles as the trailer travels over uneven surfaces.
Torsion Axles
Torsion axles use rubber cords inside the axle assembly to provide suspension movement.
Each wheel operates more independently than with a traditional leaf-spring setup.
Potential advantages include:
- Smooth ride characteristics
- Fewer exposed suspension components
- Independent wheel movement
- Clean appearance
- Lower-maintenance suspension design
Neither system is automatically right for every buyer. Trailer design, load requirements, road conditions, serviceability, and intended use should all be considered.
What Are Spread Axles?
A spread-axle trailer positions the axles farther apart than a conventional tandem-axle configuration.
Spread axles are particularly popular on upgraded enclosed trailers and race trailers.
Potential advantages include:
- Distinctive appearance
- Wider wheelbase
- Increased stability characteristics in some applications
However, the increased distance between the axles can also create additional tire scrub during tight turns.
For many race-trailer and custom enclosed-trailer buyers, the combination of appearance and trailer configuration makes spread axles a popular option.
Do Trailer Axles Have Brakes?
Many trailer axles used on larger enclosed trailers are equipped with brakes.
Electric trailer brakes are commonly activated through a brake controller in the tow vehicle.
When the driver applies the tow vehicle's brakes, the brake controller sends an electrical signal through the trailer connection to activate the trailer brakes.
Properly functioning trailer brakes are an important part of safely controlling a loaded trailer.
Brake requirements vary by trailer weight and jurisdiction, so owners should verify the requirements that apply where the trailer will be operated.
How Axles Affect Trailer Payload
One of the biggest mistakes trailer buyers can make is assuming that axle capacity equals cargo capacity.
It doesn't.
For example:
Two 5,200 lb axles = 10,400 lbs of combined axle capacity.
That does not automatically mean you can put 10,400 lbs of cargo inside the trailer.
Payload is affected by several factors, including:
- Trailer GVWR
- Empty trailer weight
- Axle ratings
- Tire and wheel ratings
- Coupler rating
- Frame and chassis design
- Suspension components
- Other manufacturer specifications
A simple way to understand payload is:
GVWR − Empty Trailer Weight = Approximate Available Payload
For example, if a trailer has a GVWR of 9,990 lbs and weighs 3,000 lbs empty:
9,990 − 3,000 = 6,990 lbs
The approximate available payload would be 6,990 lbs, subject to proper loading, component ratings, tongue weight, and the manufacturer's specifications.

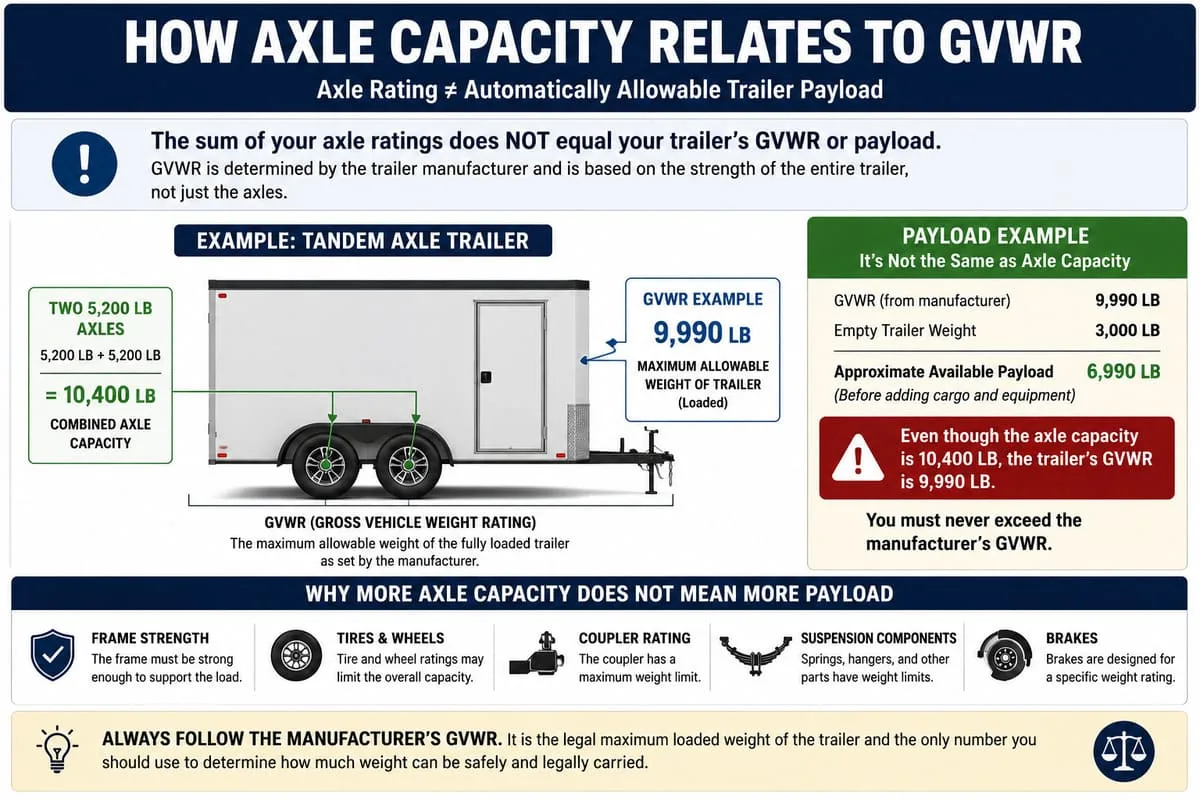

Axle Rating vs. GVWR
Axle rating and GVWR are related, but they are not interchangeable.
AXLE RATING:
The amount of weight an individual axle is rated to support.
GVWR:
The maximum loaded weight assigned to the complete trailer by its manufacturer.
Always use the trailer's manufacturer-assigned GVWR when determining the maximum allowable loaded trailer weight.
Never increase the assumed GVWR simply because heavier axles have been installed.
How to Identify Your Trailer Axle Rating
If you already own a trailer and aren't sure which axles it has, don't rely on appearance alone.
Look for information from:
- The trailer's VIN/data plate
- Axle identification tags or labels
- Manufacturer documentation
- Original trailer specifications
- Axle manufacturer information
Axles with different ratings can look similar, so visual identification alone may not be reliable.
Which Trailer Axle Setup Should You Choose?
The best axle configuration depends on what you plan to haul.
GENERAL CARGO
For furniture, household goods, recreational equipment, and other lighter cargo, a properly rated trailer with 3,500 lb axles may provide all the capacity you need.
MOTORCYCLES
Motorcycle trailers often don't require extremely high payload capacity, making lighter axle configurations practical for many buyers.
CARS
Car haulers require careful attention to vehicle weight, trailer weight, GVWR, axle capacity, tires, wheels, brakes, and tongue weight.
Many enclosed car haulers use tandem 5,200 lb or heavier axle configurations depending on their design.
RACE TRAILERS
Race trailers can become surprisingly heavy once you add a vehicle, cabinets, tools, spare tires, generators, fuel, equipment, air conditioning, finished interiors, and other accessories.
Choosing sufficient capacity from the beginning is important.
CONTRACTOR AND WORK TRAILERS
Tools, equipment, shelving, generators, compressors, and building materials add weight quickly.
Contractors should consider not only what they carry today but also how the trailer may be used in the future.
HEAVY CUSTOM TRAILERS
Large custom trailers may require 7,000 lb axles or multi-axle configurations depending on the trailer design and intended load.
Don't Buy an Axle Rating — Buy the Right Trailer
Bigger isn't automatically better.
A trailer should be selected as a complete system based on what you intend to haul.
Consider:
- Cargo weight
- Trailer empty weight
- GVWR
- Axle configuration
- Tires and wheels
- Trailer brakes
- Tow vehicle capacity
- Hitch capacity
- Tongue weight
- Trailer dimensions
- Future hauling needs
Choosing the right trailer from the beginning can help prevent buying too little trailer for the job—or paying for capacity you don't need.
Trailer Axle FAQ
Are 5,200 lb axles better than 3,500 lb axles?
They provide greater rated capacity, but that doesn't necessarily make them the better choice for every trailer. The proper axle depends on trailer design, GVWR, cargo weight, and intended use.
How much weight can two 3,500 lb axles carry?
Two 3,500 lb axles have a combined axle rating of 7,000 lbs. This does not automatically mean the trailer has a 7,000 lb GVWR or 7,000 lbs of payload capacity.
How much weight can two 5,200 lb axles carry?
Two 5,200 lb axles provide 10,400 lbs of combined axle capacity. The trailer's actual maximum loaded weight is determined by its manufacturer-assigned GVWR and applicable component ratings.
How much weight can two 7,000 lb axles carry?
Two 7,000 lb axles provide 14,000 lbs of combined axle capacity. Always follow the trailer manufacturer's GVWR rather than using axle capacity alone.
Are torsion axles better than leaf springs?
Both designs have advantages. Torsion axles provide independent wheel movement and have fewer exposed suspension components, while leaf-spring systems are widely used and generally straightforward to service.
Are spread axles better?
Spread axles can provide a distinctive appearance and different stability characteristics, but they can also produce more tire scrub during tight turns. Whether they're appropriate depends on the trailer and intended use.
Can I increase my trailer's GVWR by installing heavier axles?
Do not assume that replacing the axles increases the trailer's GVWR. GVWR is assigned by the trailer manufacturer based on the complete trailer design.
