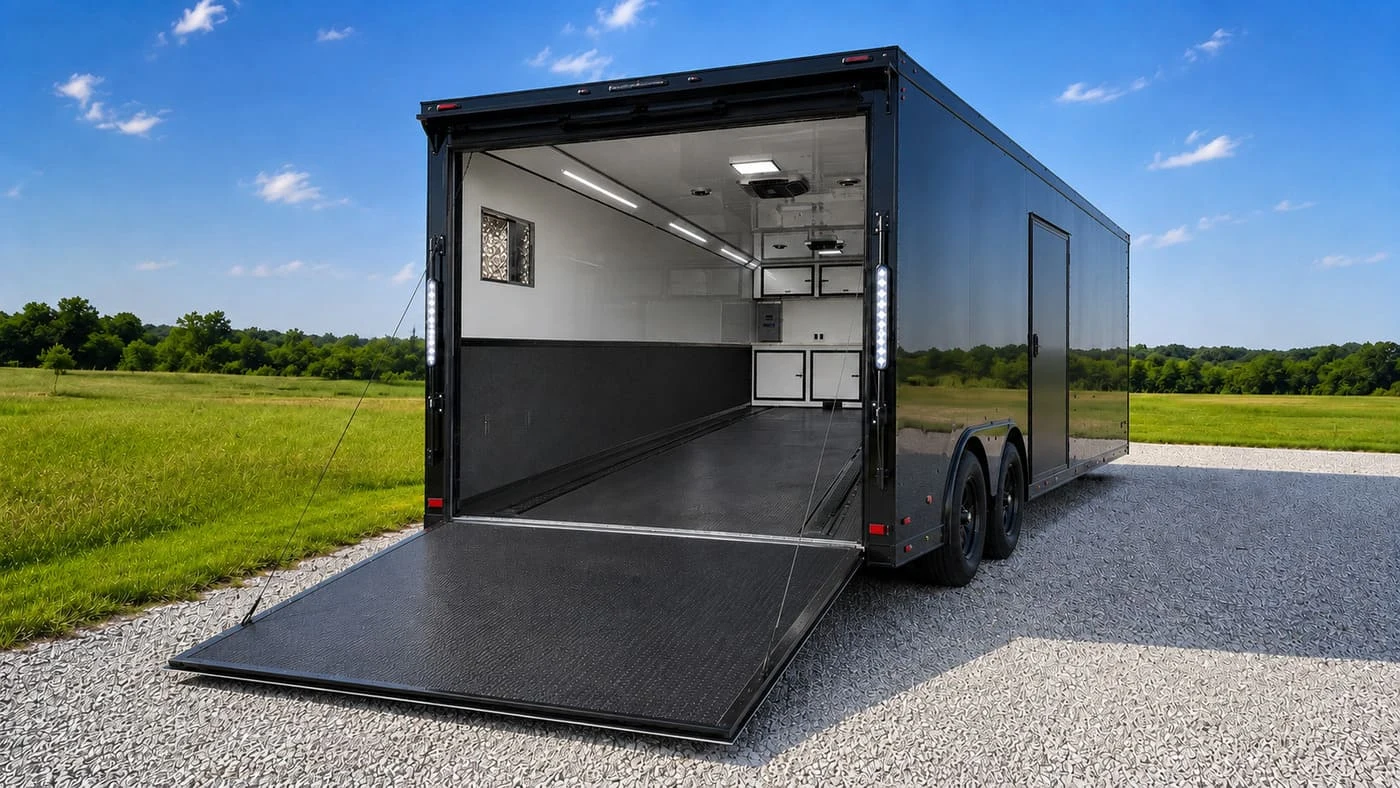

Insulation can make an enclosed trailer more comfortable and better suited for mobile work, racing, concessions, recreation and equipment storage. However, insulation is only one part of the complete interior system.
Southern Trailer Depot offers two common insulation options: R-foil reflective bubble insulation and white bead-board foam insulation. The insulation material, installation method, coverage, interior finish, ventilation, air conditioning and electrical capacity must all work together. This guide explains what to compare before ordering an insulated enclosed trailer.
Better Trailers Since 2007

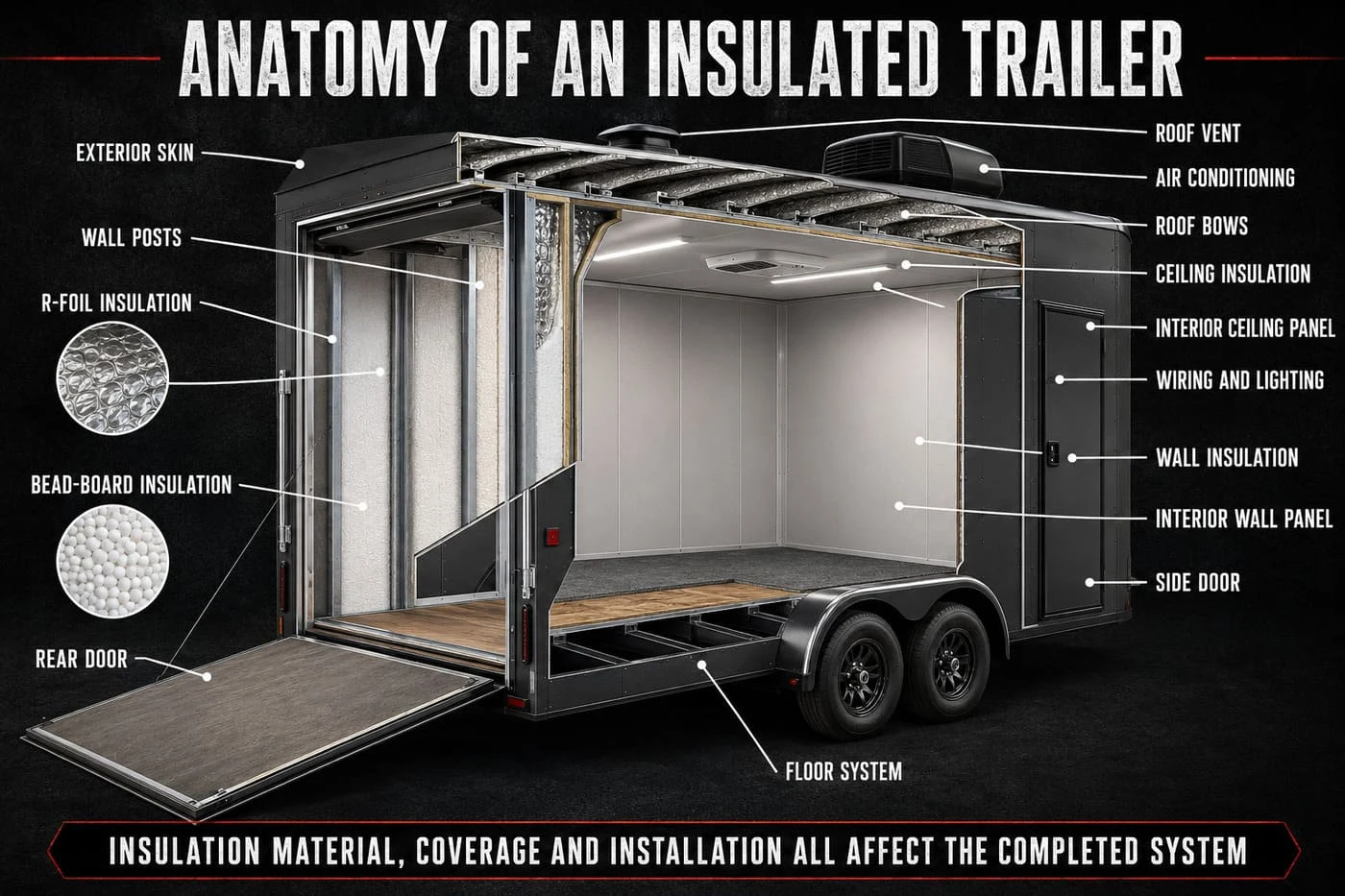

Insulation Is Part of a Complete System
Insulation can help slow heat transfer, but it does not heat, cool or ventilate the trailer by itself.
A complete insulated trailer may include:
- ✓Exterior skin
- ✓Wall posts
- ✓Roof bows
- ✓R-foil insulation
- ✓Bead-board insulation
- ✓Interior wall panels
- ✓Finished ceiling panels
- ✓Insulated doors
- ✓Sealed openings
- ✓Roof vents
- ✓Air conditioning
- ✓Electrical wiring
- ✓Interior lighting
- ✓Moisture-management features
The effectiveness of the completed system depends on the insulation material, coverage, installation quality and number of gaps or uninsulated areas.
Do not compare two trailers using the word “insulated” alone. Ask what material is installed, where it is installed and what parts of the trailer remain uninsulated.
Southern Trailer Depot Insulation Options
Southern Trailer Depot offers R-foil and white bead-board insulation. Each material has different characteristics and installation considerations.
The right option depends on the trailer’s intended use, interior finish and complete climate-control system.
R-Foil Reflective Bubble Insulation
R-foil is a lightweight reflective insulation with a tin-foil-colored exterior and an enclosed bubble layer.
It is commonly installed in enclosed trailer walls and ceilings where space is limited and a lightweight insulation system is preferred.
Advantages of R-Foil
- ✓Lightweight
- ✓Reflective metallic surface
- ✓Moisture resistant
- ✓Clean installation
- ✓Works well in shallow framing spaces
- ✓Commonly used in walls and ceilings
- ✓Does not absorb water like some fibrous materials
- ✓Adds less weight than many heavier interior components
R-Foil Considerations
- ✓Performance depends on correct installation
- ✓Coverage should remain continuous where possible
- ✓Seams and edges must be handled carefully
- ✓Gaps around framing and wiring can affect the completed system
- ✓The installation method affects performance
- ✓It does not eliminate thermal transfer through metal framing
- ✓Interior wall and ceiling panels must be planned with the insulation
R-foil should be installed according to the applicable product and trailer-manufacturer requirements.
White Bead-Board Insulation
Bead board is a rigid white foam insulation made from compressed foam beads. It is cut into panels and fitted between the trailer’s wall posts or roof bows.
Bead board is often selected when buyers want rigid insulation filling the framing cavities behind finished walls or ceiling panels.
Advantages of Bead Board
- ✓Lightweight rigid panels
- ✓Easy to identify and inspect before walls are closed
- ✓Can be cut to fit between framing members
- ✓Does not settle inside the wall
- ✓Provides consistent cavity coverage when fitted correctly
- ✓Works behind finished wall and ceiling panels
- ✓Can be installed around planned wiring and equipment
Bead-Board Considerations
- ✓Every panel must be cut accurately
- ✓Gaps around framing can reduce coverage
- ✓Wiring and structural bracing can interrupt the panels
- ✓Small spaces around outlets and equipment must be addressed
- ✓Panels should be protected behind the finished interior
- ✓Material compatibility should be confirmed before using adhesives
- ✓Future wiring changes may require access through the finished interior
Bead board should fit securely within the available cavities without interfering with wiring, equipment bracing or the installation of the finished interior panels.

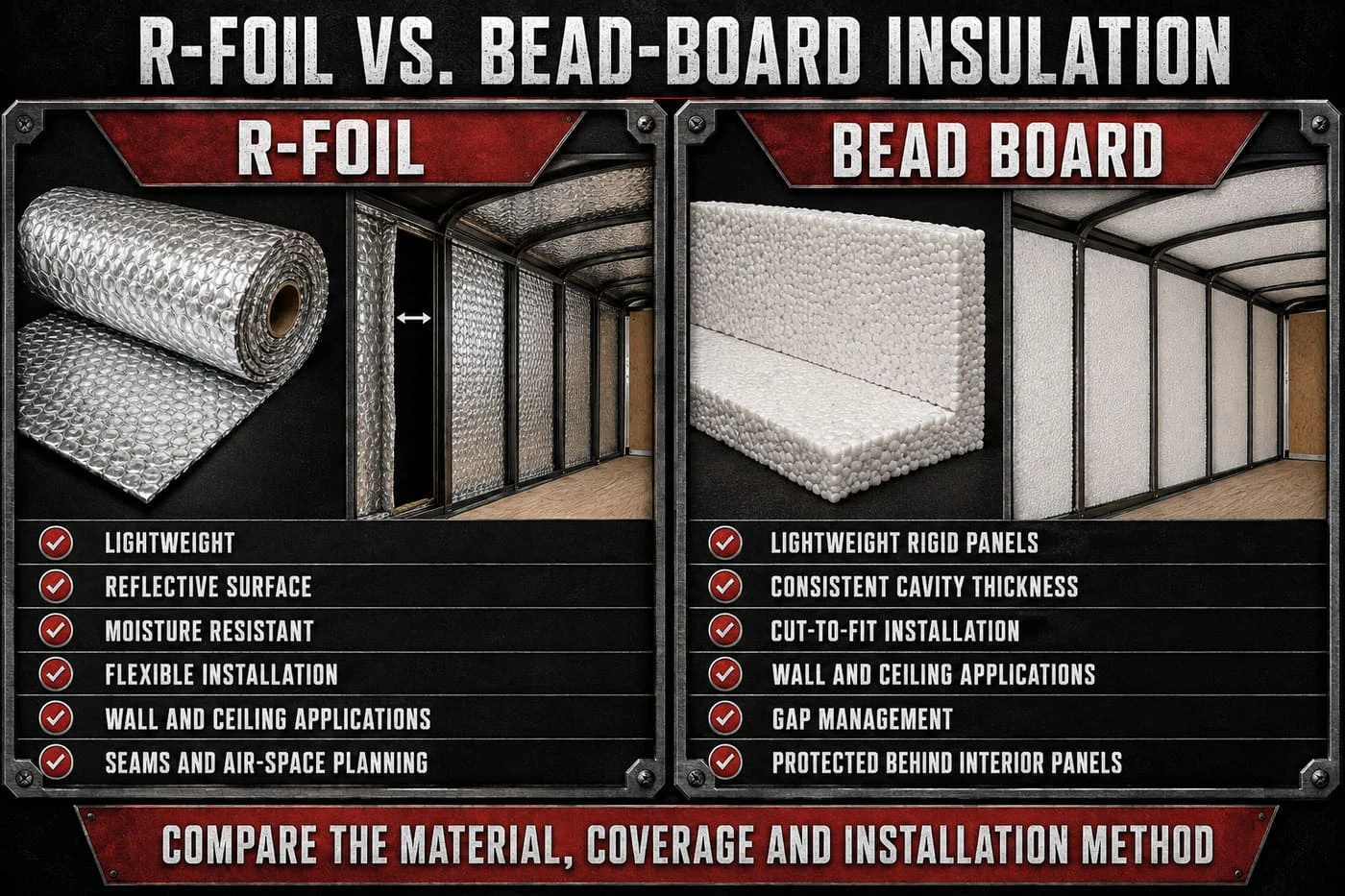

R-Foil vs. Bead Board
Both materials can be used as part of an insulated enclosed trailer, but they are installed differently.
| Category | R-Foil | Bead Board |
|---|---|---|
| Appearance | Silver, reflective and similar in appearance to tin-foil-colored bubble wrap. | White rigid foam panels with a visible bead-like texture. |
| Flexibility | Flexible material that can follow wall and ceiling areas. | Rigid panels that must be measured and cut to fit each cavity. |
| Weight | Very lightweight. | Also lightweight, although the completed weight depends on the amount of material and interior finish. |
| Moisture | The reflective material does not absorb water like fibrous insulation, but water can still travel around seams, edges and penetrations. | The foam material is generally moisture resistant, but gaps and surrounding materials must still be protected from water. |
| Installation | Requires proper coverage, seam treatment and installation planning. | Requires accurate cutting and close fitting around framing, wiring and bracing. |
Future Access
Both systems are normally installed behind interior wall or ceiling panels. Wiring and equipment locations should be finalized before the interior is closed.

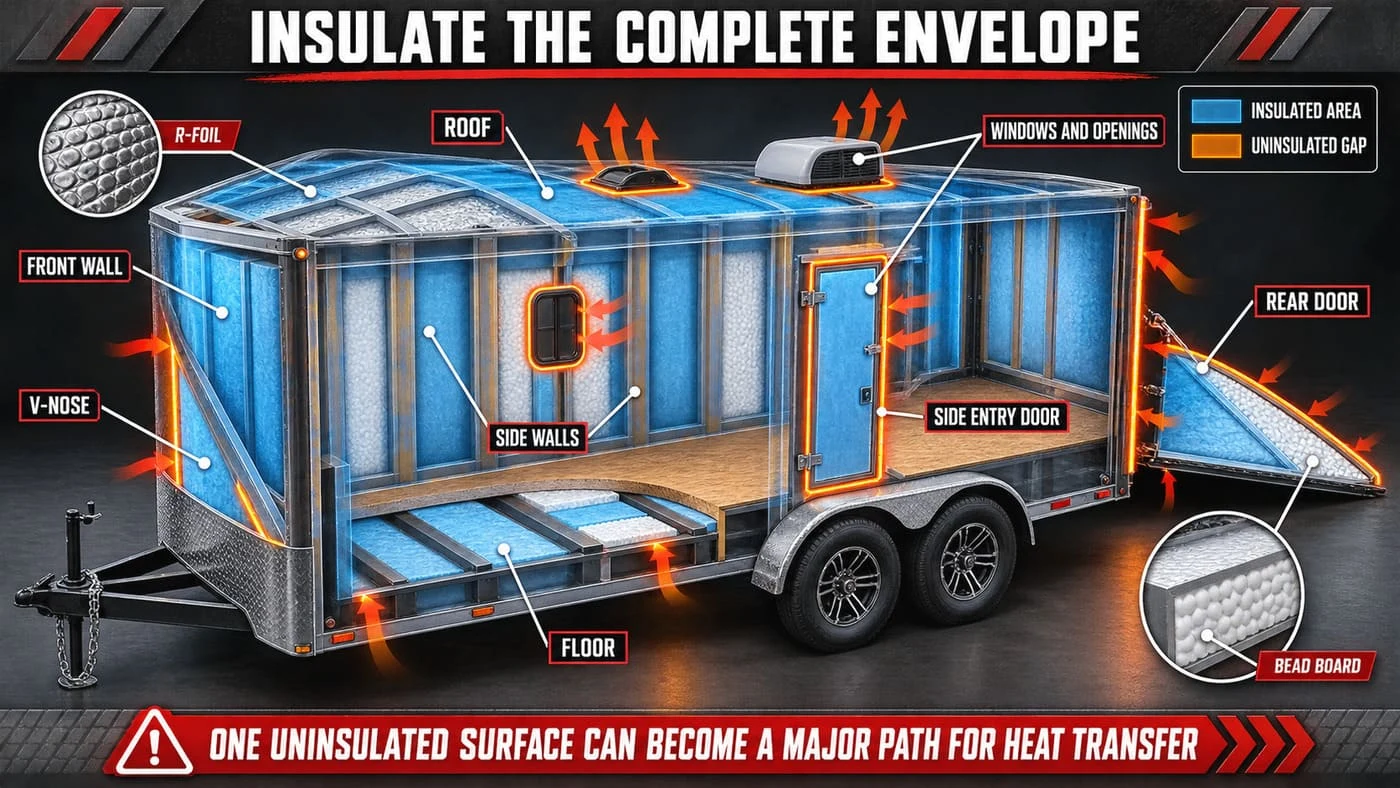

Insulate the Complete Trailer Envelope
Insulating only one part of the trailer may leave major paths for heat transfer.
The complete trailer envelope can include:
- ✓Roof
- ✓Front wall
- ✓Side walls
- ✓Rear door
- ✓Side entry door
- ✓Floor
- ✓V-nose
- ✓Windows
- ✓Roof vents
- ✓Air-conditioning openings
- ✓Wiring penetrations
- ✓Generator compartments
- ✓Concession openings
The roof and upper walls receive substantial solar exposure, while doors, framing and unsealed openings can create weak areas in the completed system.
Before ordering, confirm exactly which surfaces are included in the insulation package.
Questions to Ask
- ✓Are the walls insulated?
- ✓Is the ceiling insulated?
- ✓Is the rear ramp or barn door insulated?
- ✓Is the side entry door insulated?
- ✓Is the V-nose insulated?
- ✓Is insulation installed behind cabinets?
- ✓Is the floor insulated?
- ✓How are roof openings handled?
- ✓How are wiring penetrations sealed?
- ✓Are wheel-box areas included?
- ✓What interior panels cover the insulation?
- ✓Is R-foil or bead board being installed?

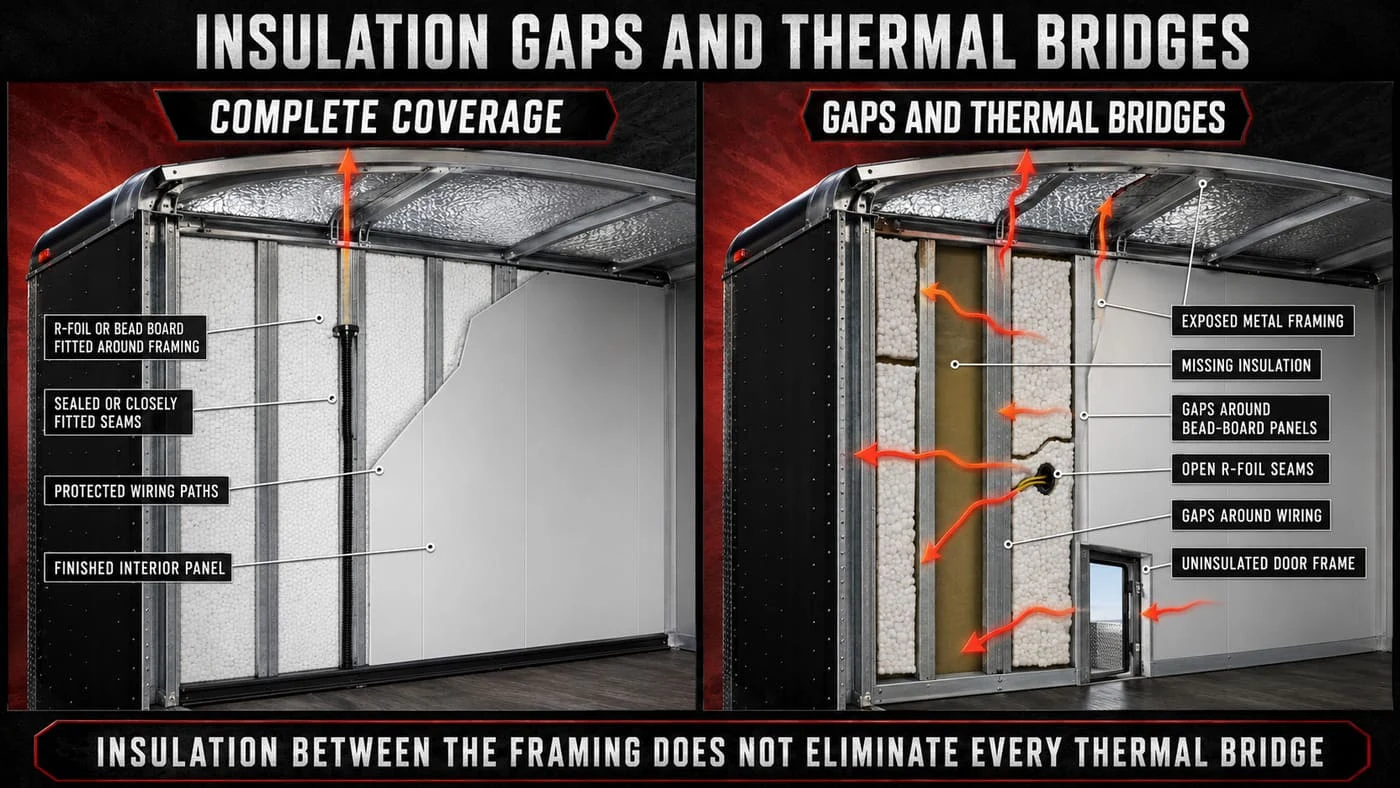

Metal Framing and Thermal Bridging
Steel or aluminum framing can transfer heat through the wall or roof system. This is known as thermal bridging.
Even when R-foil or bead board fills the spaces between wall posts or roof bows, metal framing can create a more direct path between the exterior and interior surfaces.
Potential thermal bridges include:
- ✓Wall posts
- ✓Roof bows
- ✓Perimeter rails
- ✓Door frames
- ✓Window frames
- ✓Structural bracing
- ✓Fasteners
- ✓Interior trim
- ✓Cabinet attachments
- ✓Equipment mounts
A finished interior panel may become warmer or cooler where it contacts the framing. In certain conditions, these areas may also become locations where condensation appears first.
Insulation between framing members and a continuous thermal layer are different approaches. Ask how the entire wall and ceiling assembly is constructed.

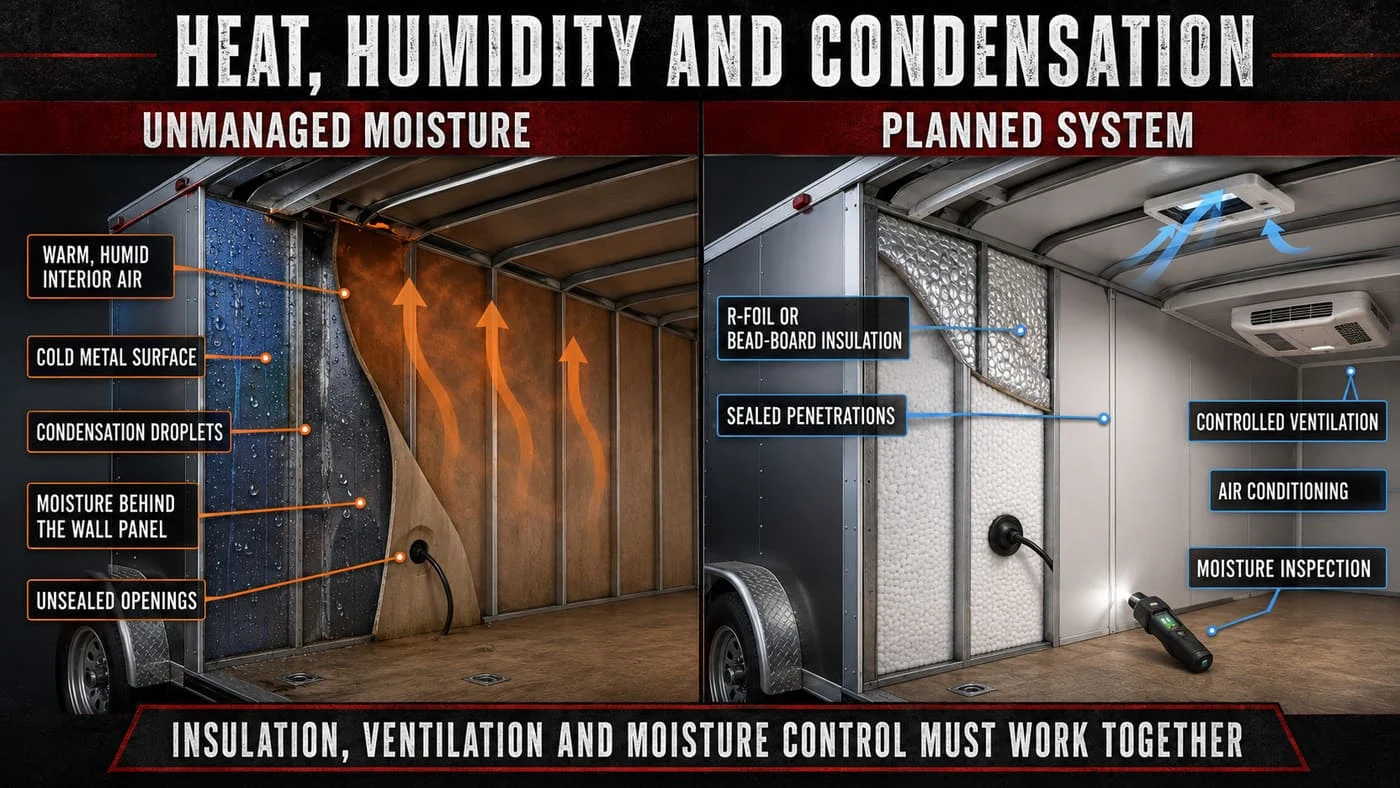

Condensation and Moisture Management
Insulation and moisture management must be planned together.
Condensation can develop when warm, moisture-containing air contacts a colder surface. Activities inside the trailer can also add moisture.
Possible moisture sources include:
- ✓Wet equipment
- ✓Landscaping equipment
- ✓Motorcycles or vehicles brought in from rain
- ✓Cooking
- ✓Washing
- ✓Breathing and occupancy
- ✓Concession equipment
- ✓Generator compartments
- ✓Temperature changes
- ✓Roof or wall leaks
Watch For:
- ✓Water droplets on metal surfaces
- ✓Moisture behind the insulation
- ✓Ceiling stains
- ✓Swollen wall panels
- ✓Soft floor areas
- ✓Rust around fasteners
- ✓Musty odors
- ✓Moisture around windows
- ✓Moisture near air-conditioning openings
- ✓Mold or mildew
R-foil and bead board may resist moisture better than some absorbent materials, but neither option prevents roof leaks, air leakage or condensation by itself.
Insulation should not be used to hide an existing leak. Roof seams, door openings, wall penetrations and floor edges should be inspected and protected before the interior is finished.

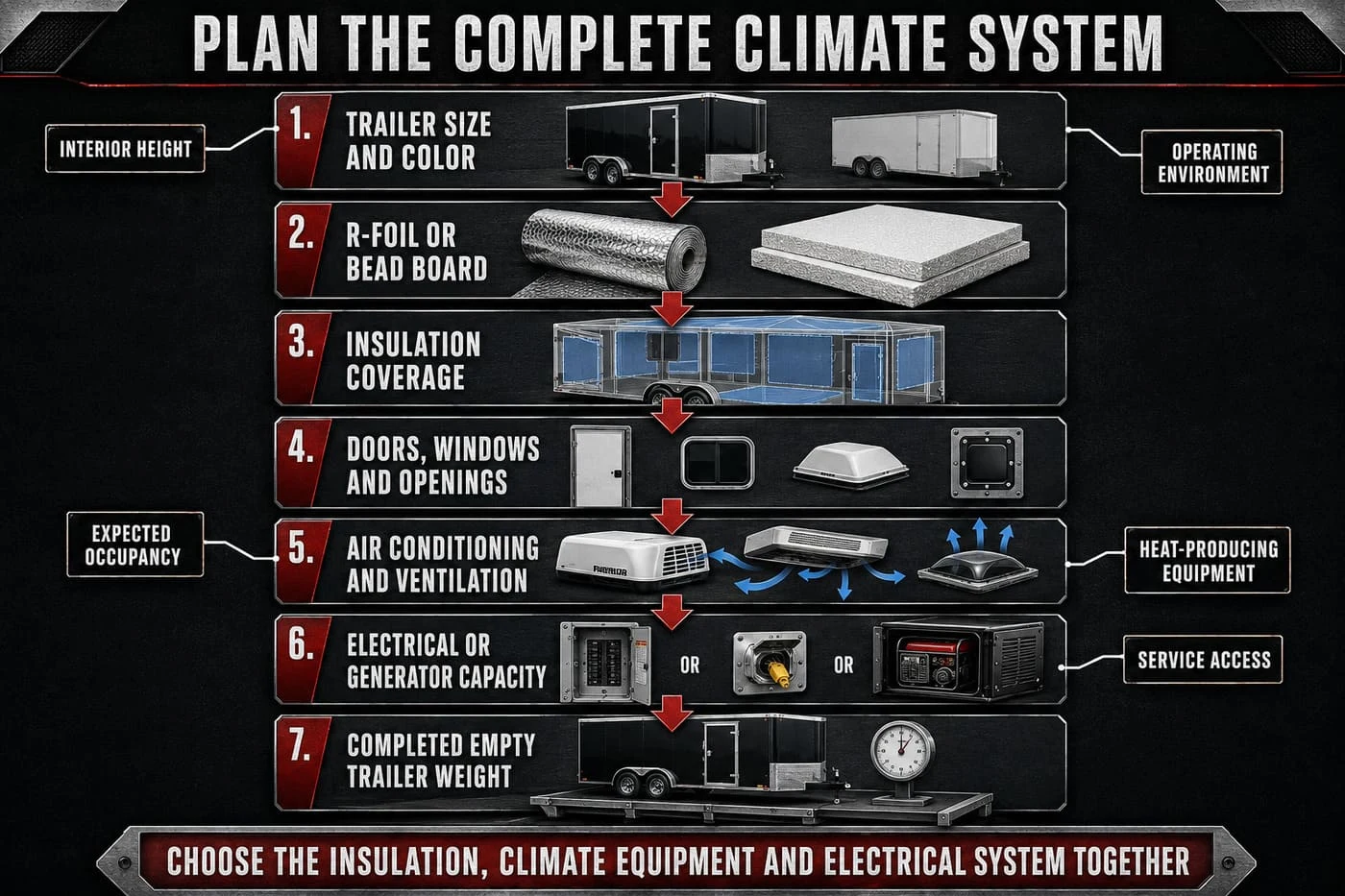

Insulation and Air Conditioning
Insulation can help an air-conditioning system manage interior conditions, but the completed result depends on more than the presence of insulation.
Consider:
- ✓Trailer length and width
- ✓Interior height
- ✓Exterior color
- ✓Number of doors and windows
- ✓Frequency of door opening
- ✓R-foil or bead-board coverage
- ✓Air-conditioning capacity
- ✓Electrical service
- ✓Generator capacity
- ✓Shore-power availability
- ✓Interior heat-producing equipment
- ✓Number of occupants
- ✓Outdoor temperature and sunlight
- ✓Air leakage
- ✓Ventilation requirements
A dark trailer exposed to direct sunlight may experience more solar heat gain than a lighter-colored trailer. Large doors, concession openings and frequent loading can also allow conditioned air to escape.
Do not select an air-conditioning unit using trailer length alone. The complete build and intended operating conditions should be considered. Insulation does not turn an enclosed trailer into a refrigerated trailer or guarantee a specific interior temperature.
Electrical and Equipment Planning
An insulated and climate-controlled trailer may require a more complete electrical system.
Possible equipment includes:
- ✓Rooftop air conditioning
- ✓Mini-split air conditioning
- ✓Roof vents
- ✓Exhaust fans
- ✓Interior lighting
- ✓Electrical outlets
- ✓Shore-power connection
- ✓Breaker panel
- ✓Converter or battery charger
- ✓Batteries
- ✓Solar equipment
- ✓Generator
- ✓Appliances
- ✓Tools and machinery
Plan electrical wiring before covering the walls and ceiling. Future access becomes more difficult after insulation, interior panels and cabinets are installed.
Electrical components should be correctly sized and installed for the equipment they serve.
Insulation and Interior Finishes Add Weight
R-foil and bead-board insulation are both lightweight, but the complete finished-interior package can add meaningful weight.
Added components may include:
- ✓R-foil or bead-board insulation
- ✓Adhesive
- ✓Tape and sealant
- ✓Interior wall panels
- ✓Ceiling panels
- ✓Trim
- ✓Fasteners
- ✓Air conditioning
- ✓Roof vents
- ✓Wiring
- ✓Breaker panel
- ✓Outlets
- ✓Lighting
- ✓Batteries
- ✓Generator
- ✓Cabinets
- ✓Shelving
The weight of these components becomes part of the completed empty trailer weight.
GVWR − COMPLETED EMPTY TRAILER WEIGHT = THEORETICAL PAYLOAD
Every installed upgrade reduces the weight available for cargo under a fixed GVWR. Use the actual completed trailer weight when confirming capacity.
Always confirm the completed trailer weight instead of relying only on the weight of an unfinished base trailer.

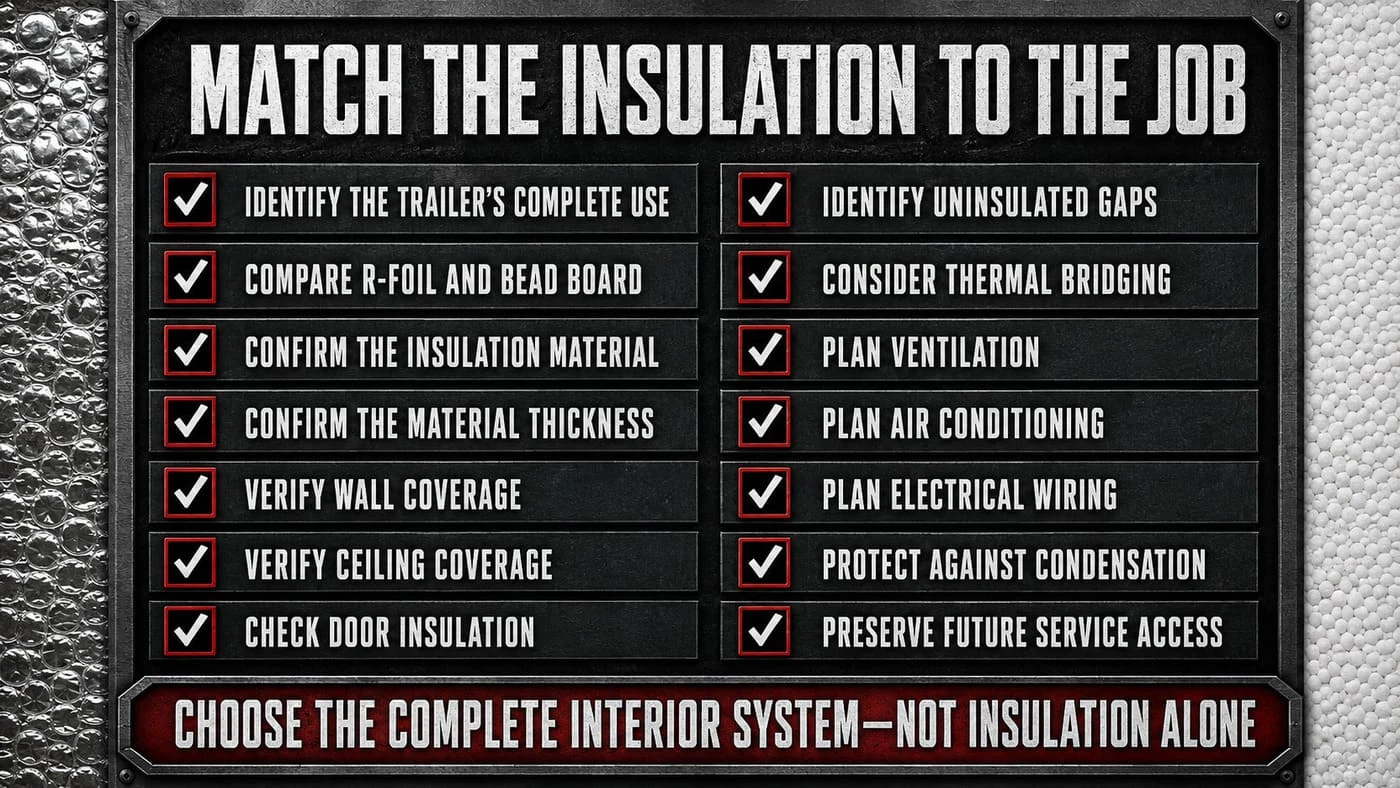

Match the Insulation to the Job
General Cargo
Contractor and Mobile Service Work
Landscaping
Motorcycles and ATVs
Race and Car Hauling
Concession Trailers
Mobile Offices and Recreational Builds
Before Covering the Walls
Once the interior panels are installed, framing, wiring and insulation are more difficult to access.
Before closing the walls and ceiling, confirm:
- ✓R-foil or bead-board selection
- ✓Insulation coverage
- ✓Material thickness
- ✓R-foil seams and edges
- ✓Bead-board panel fit
- ✓Door-frame areas
- ✓Window openings
- ✓Roof penetrations
- ✓Wiring routes
- ✓Outlet locations
- ✓Lighting locations
- ✓Air-conditioning wiring
- ✓Future cabinet attachment points
- ✓E-Track attachment points
- ✓Structural bracing
- ✓Moisture protection
- ✓Future service access
Photographs of the framing, wiring and insulation before the interior panels are installed can help with future equipment installation and repairs.
Questions to Ask Before Ordering
Before choosing a trailer insulation package, ask:
- ✓Will the trailer use R-foil or bead-board insulation?
- ✓What thickness will be installed?
- ✓Are the walls insulated?
- ✓Is the ceiling insulated?
- ✓Is the rear ramp or barn door insulated?
- ✓Is the side entry door insulated?
- ✓Is the V-nose insulated?
- ✓Is the floor insulated?
- ✓How are R-foil seams and edges handled?
- ✓How closely is the bead board fitted around framing?
- ✓How are wiring penetrations handled?
- ✓How is condensation managed?
- ✓Is ventilation included?
- ✓Is the roof braced for air conditioning?
- ✓What electrical system is required?
- ✓Will wiring remain accessible?
- ✓How much weight will the completed interior add?
- ✓How will cabinets and E-Track attach to the structure?
- ✓What surfaces will remain uninsulated?
- ✓What maintenance will the finished system require?
Frequently Asked Questions
What insulation does Southern Trailer Depot offer?
Southern Trailer Depot offers R-foil reflective bubble insulation and white bead-board foam insulation. Available materials and coverage may vary by trailer, manufacturer and ordered configuration.
What is R-foil trailer insulation?
R-foil is a lightweight reflective insulation with a tin-foil-colored surface and enclosed bubble layer. It is commonly installed inside enclosed trailer walls and ceilings.
What is bead-board trailer insulation?
Bead board is a lightweight rigid white foam made from compressed foam beads. Panels are measured, cut and fitted between the trailer’s framing members.
Is R-foil or bead board better?
The right choice depends on the trailer’s intended use, available framing space, installation method, interior finish and climate-control plan. Compare the complete build instead of choosing by appearance alone.
Is R-foil moisture resistant?
R-foil does not absorb water like fibrous materials, but moisture can still travel around seams, edges, fasteners and openings. The complete trailer must still be inspected for leaks and condensation.
Is bead board moisture resistant?
Bead-board foam is generally moisture resistant, but it does not prevent water from entering through roof seams, doors or other openings. Surrounding wood, metal and interior panels must still be protected.
Should the trailer roof be insulated?
Roof insulation may help reduce heat transfer through one of the trailer’s most sun-exposed surfaces. Ceiling insulation should be planned with roof vents, air conditioning, wiring and structural bracing.
Should the rear door be insulated?
An uninsulated rear door can become a significant path for heat transfer. Ask whether the rear ramp or barn doors are included in the insulation package.
Does insulation stop condensation?
Insulation may reduce contact between interior air and some cold metal surfaces, but it does not eliminate every cause of condensation. Ventilation, moisture control and temperature management are also important.
Can insulation be added after buying the trailer?
Insulation can sometimes be added later, but wall and ceiling panels, wiring, cabinets and other equipment may need to be removed. Planning insulation during the original build is generally easier.
Does insulation make an enclosed trailer climate controlled?
No. Climate control may also require appropriately selected air conditioning, ventilation, electrical service and control of air and moisture leakage.
Does insulation add weight?
Yes. R-foil and bead board are lightweight, but insulation, interior panels, adhesives, trim and climate-control equipment all add to the completed empty trailer weight.
Should wiring be installed before insulation?
Wiring routes, outlets, lighting and equipment connections should be planned before the interior walls and ceiling are closed.
Can insulation be installed behind E-Track?
Yes, but E-Track must still attach to appropriate structural members or a properly designed mounting system. Insulation and interior paneling should not be treated as structural support.
How can I inspect insulation in a finished trailer?
Review available specifications or construction photographs and inspect visible areas around outlets, vents, trim and service openings. Ask the dealer or manufacturer what material was installed and where it was used.
Related Trailer Buyer’s Guides
Build the Complete Interior Around the Job
R-foil and bead board are both useful enclosed trailer insulation options, but the insulation material is only one part of the finished interior.
Consider the trailer’s size, exterior color, insulation coverage, doors, windows, ventilation, air conditioning, electrical capacity, interior finish, equipment and remaining payload before ordering.
Southern Trailer Depot can help you compare enclosed trailers and custom-build options for work, racing, motorcycles, concessions, recreation and general cargo.
Southern Trailer Depot — Trailer Shoppers’ Last Stop Since 2007
