8.5x16 Enclosed Trailer Guide

An 8.5×16 enclosed trailer combines a full-width cargo area with a relatively compact 16-foot floor length. It provides substantially more usable width than a 7×16 while remaining shorter and easier to maneuver than longer 8.5-wide trailers.

This size is commonly considered for:

• ✓Motorcycles
• ✓ATVs and UTVs
• ✓Golf carts
• ✓Lawn-care equipment
• ✓Contractor tools
• ✓Mobile workshops
• ✓Concession builds
• ✓Mobile businesses
• ✓General commercial cargo
• ✓Recreational equipment

Choosing the right trailer involves more than confirming that the cargo will fit inside. Buyers should compare the usable interior dimensions, rear opening, trailer weight, payload, GVWR, axle package, tie-down locations and tow-vehicle requirements.

This guide explains the major factors to consider before purchasing or ordering an 8.5×16 enclosed trailer.

FULL-WIDTH CARGO SPACE IN A MANAGEABLE 16-FOOT TRAILER

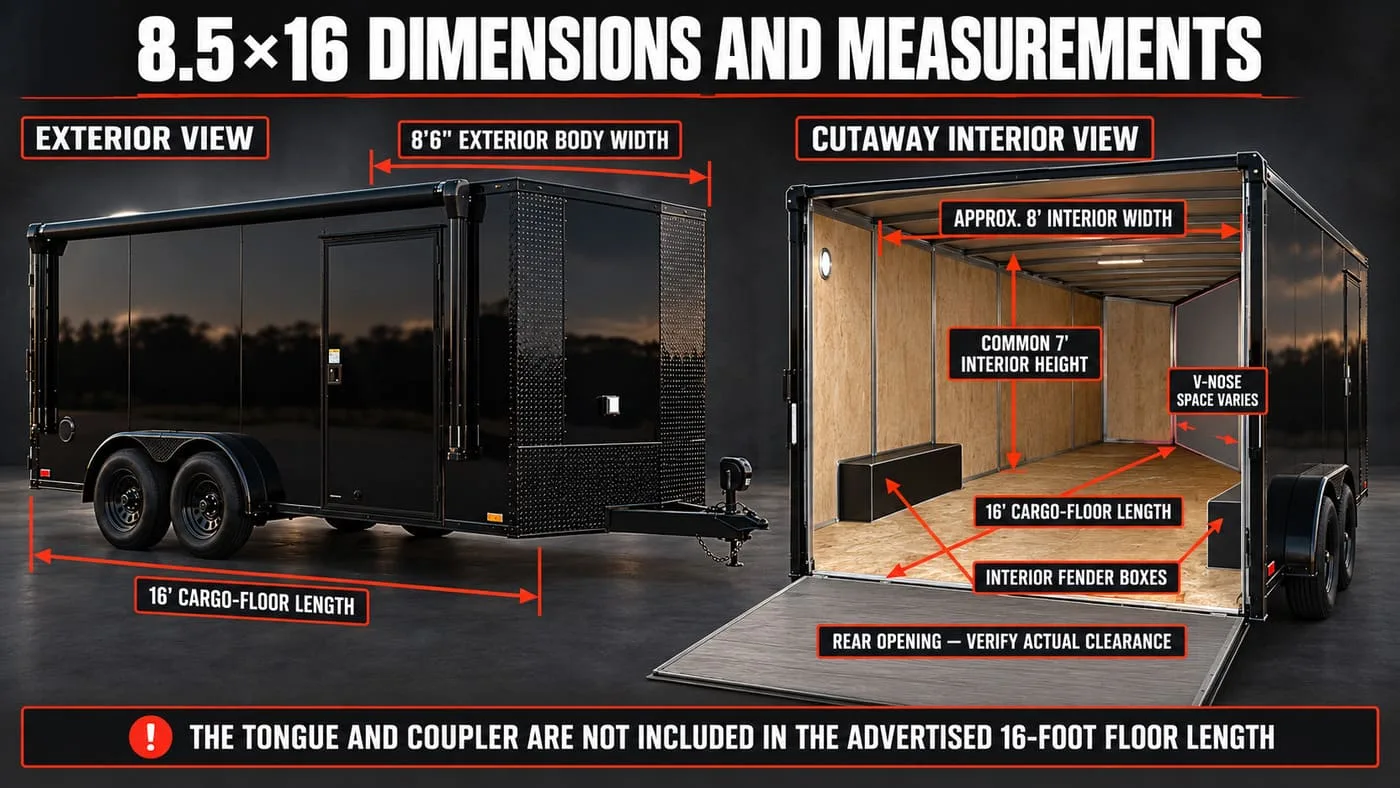

The 8.5×16 designation generally refers to a trailer with an exterior body width of approximately 8 feet 6 inches and a cargo-floor length of approximately 16 feet.

The tongue and coupler are not normally included in the advertised 16-foot floor length. A V-nose may provide additional usable space ahead of the main rectangular cargo area, but its dimensions and usable depth vary by manufacturer and trailer design.

Manufacturing methods, wall thickness, interior finishes, roof shape, rear-door construction and optional equipment can change the usable dimensions.

An 8.5-wide trailer commonly provides approximately 8 feet of usable interior width.

Because the body extends over the wheels, interior fender boxes normally project into the cargo area. Buyers should measure:

• ✓Space between the interior walls
• ✓Space between the fender boxes
• ✓Fender-box height
• ✓Fender-box length
• ✓Cargo clearance above the fenders

A vehicle or piece of equipment may fit between the walls but still interfere with the fender boxes.

The main cargo floor is approximately 16 feet long. The V-nose may add usable storage space, but it should not automatically be treated as full rectangular floor space.

Cabinets, spare-tire compartments, generators, workbenches and other permanent equipment also reduce the open cargo area.

Seven-foot interior height is a popular configuration for an 8.5×16 enclosed trailer. Additional height may be available depending on the manufacturer.

Extra interior height can help accommodate:

• ✓Taller UTVs
• ✓Golf carts
• ✓Commercial equipment
• ✓Interior lighting
• ✓Finished ceilings
• ✓Rooftop air conditioning
• ✓Concession equipment
• ✓Mobile-workspace builds

Remember that advertised interior height does not automatically equal clear rear-opening height. The rear header, ramp-door framing and transition area can reduce usable loading clearance.

A typical 8.5×16 tandem-axle enclosed trailer may weigh approximately 2,800 pounds before cargo, although actual empty weight varies.

Weight can change based on:

• ✓Frame construction
• ✓Axle package
• ✓Interior height
• ✓Ramp-door construction
• ✓Exterior material
• ✓Interior wall and ceiling finishes
• ✓Flooring upgrades
• ✓Cabinets
• ✓Electrical equipment
• ✓Batteries
• ✓Generator compartment
• ✓Air conditioning
• ✓Spare tire
• ✓Winch
• ✓Awning
• ✓Additional doors

Use the actual weight listed for the completed trailer whenever possible.

A base-model estimate should not be treated as the exact weight of a customized trailer.

Loaded trailer weight includes everything being carried or permanently installed:

• ✓Empty trailer
• ✓Cargo
• ✓Tools
• ✓Equipment
• ✓Motorcycles
• ✓ATVs or UTVs
• ✓Fuel
• ✓Water
• ✓Batteries
• ✓Generator
• ✓Cabinets
• ✓Spare tire
• ✓Supplies
• ✓Personal items

The most reliable method of confirming loaded weight is to weigh the trailer as it will actually be towed.

GVWR is the maximum allowable total weight of the loaded trailer.

Payload is the amount of weight available for cargo and added equipment.

GVWR: 7,000 pounds

Estimated empty weight: 2,800 pounds

Estimated available payload: 4,200 pounds

This is an example—not a guaranteed specification for every 8.5×16 trailer.

The actual payload must be determined using the completed trailer’s certified GVWR and actual empty weight. Installed options reduce the remaining capacity available for cargo.

Suppose an 8.5×16 begins with approximately 4,200 pounds of payload. Adding cabinets, a generator, air conditioning, batteries, finished walls and other equipment reduces the capacity remaining for removable cargo.

The trailer can have sufficient physical space for the load while still exceeding its weight rating.

FIT DOES NOT EQUAL PAYLOAD

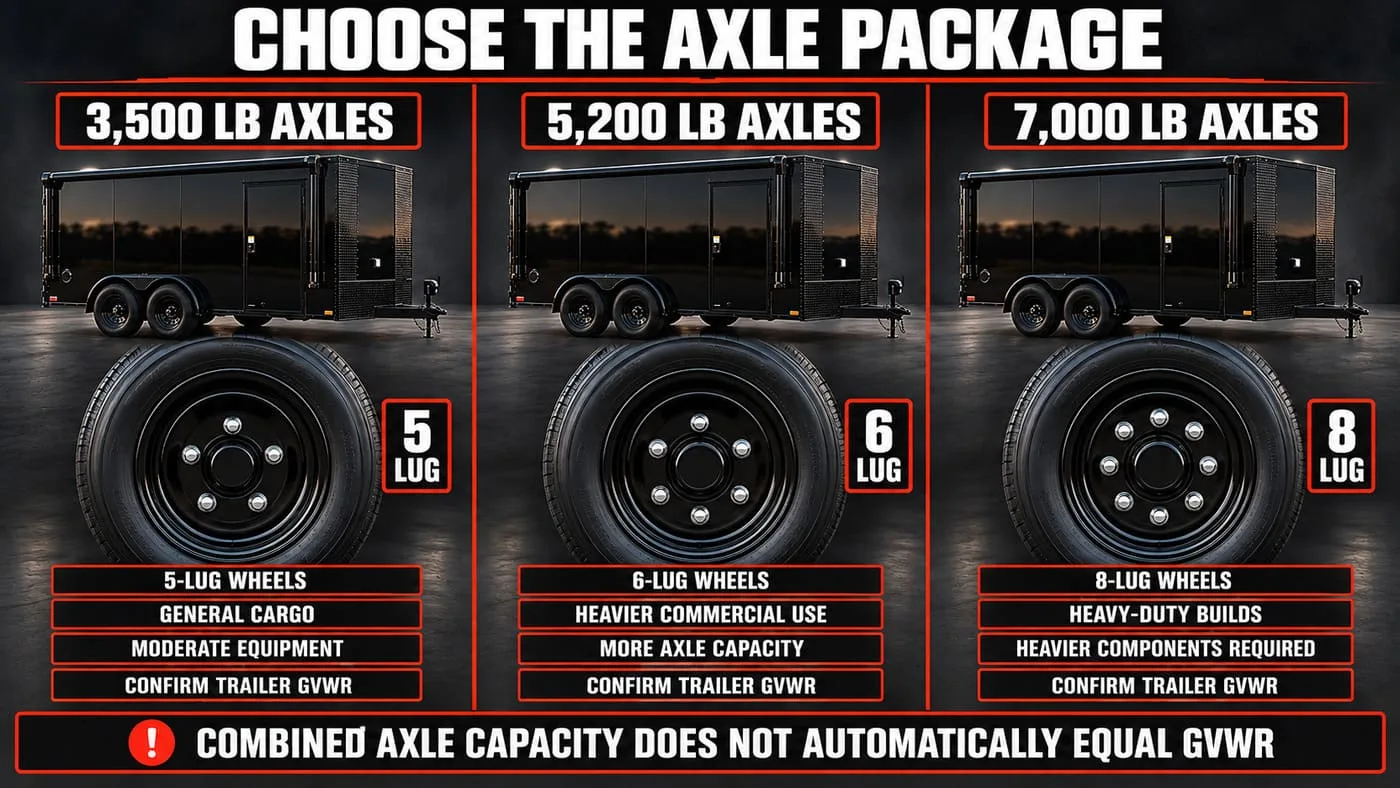

An 8.5×16 enclosed trailer is generally built with tandem axles. Available axle packages depend on the manufacturer and intended use.

Axle capacity is only one part of the trailer’s rating.

The following components also affect the completed trailer configuration:

• ✓Frame
• ✓Coupler
• ✓Tongue
• ✓Suspension
• ✓Tires
• ✓Wheels
• ✓Hubs
• ✓Bearings
• ✓Brakes
• ✓Safety chains
• ✓Door capacity
• ✓Manufacturer certification

Combined axle capacity does not automatically equal GVWR.

Two 5,200-pound axles do not automatically make a trailer’s GVWR 10,400 pounds. The manufacturer determines and certifies the final GVWR based on the complete trailer.

Leaf-spring and torsion configurations may be available depending on the manufacturer.

Leaf-spring suspension is widely used and can provide a practical, serviceable setup for cargo and commercial trailers.

Torsion axles use independent rubber-cord suspension inside the axle tube and may provide a lower deck or different ride characteristics.

The correct choice depends on:

• ✓Cargo
• ✓Loading method
• ✓Desired deck height
• ✓Ground clearance
• ✓Maintenance preferences
• ✓Axle availability
• ✓Trailer configuration

Tandem-axle 8.5×16 trailers are commonly equipped with electric brakes.

Confirm:

• ✓Brakes are installed on the required axles
• ✓The tow vehicle has a compatible brake controller
• ✓Brake-controller settings match the load
• ✓Breakaway battery is charged
• ✓Brakes are tested before entering traffic

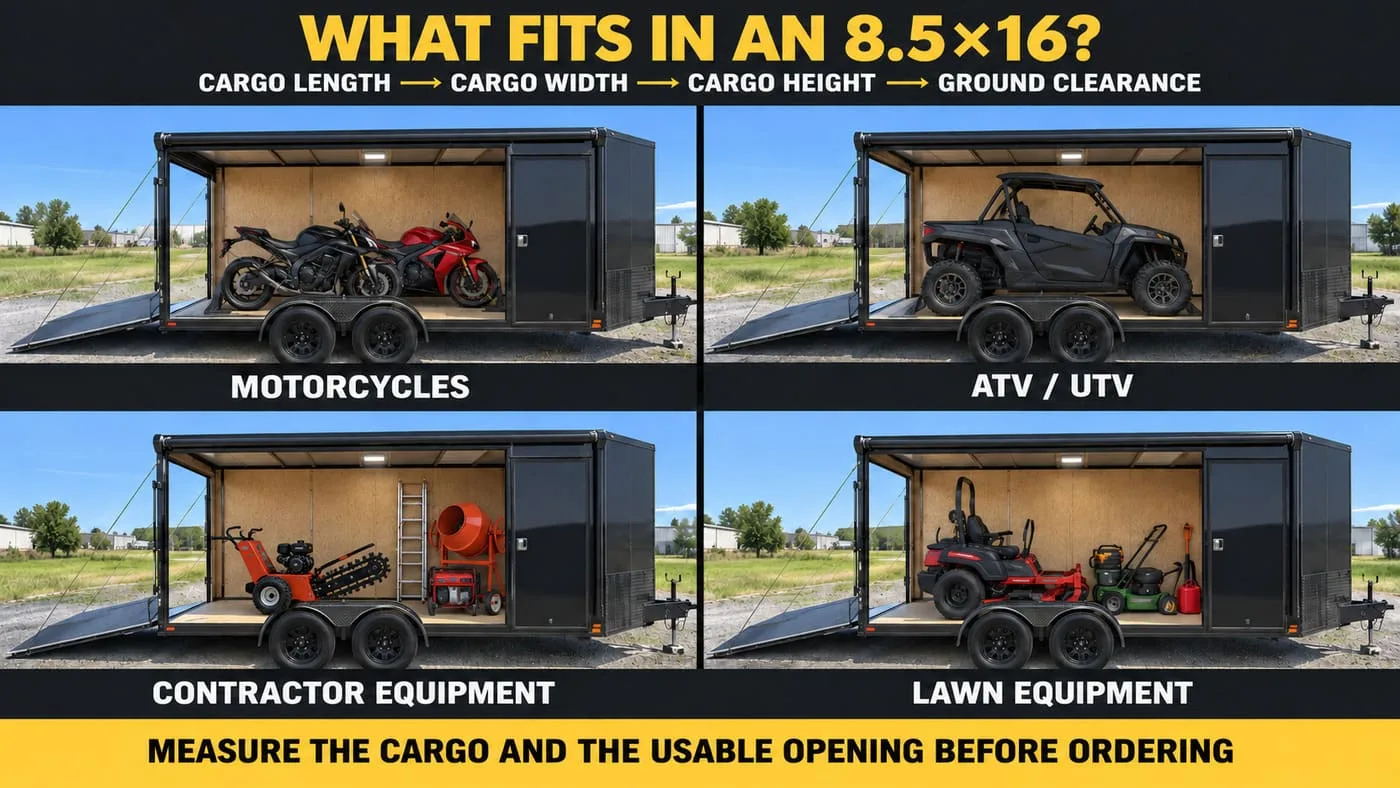

An 8.5×16 provides full-width cargo space without requiring the length of an 8.5×20 or 8.5×24.

The full-width interior can provide space for multiple motorcycles, depending on motorcycle dimensions and positioning.

Important options include:

• ✓Wheel chocks
• ✓E-Track
• ✓D-rings
• ✓Finished floor
• ✓Interior lighting
• ✓Helmet and gear storage
• ✓Side-door access
• ✓Ramp transition flap
• ✓Tie-down clearance

Measure the motorcycles with handlebars, saddlebags, fairings and other accessories installed.

An 8.5×16 may accommodate ATVs, UTVs or side-by-sides depending on their exact dimensions.

Measure:

• ✓Overall length
• ✓Overall width
• ✓Maximum height
• ✓Tire width
• ✓Roof height
• ✓Ground clearance
• ✓Added accessories
• ✓Rear-opening clearance

A UTV can fit inside the trailer’s main body and still be too tall or wide for the usable rear opening.

An 8.5×16 can provide room for one or more golf carts depending on their size and arrangement.

Measure lifted carts carefully. Added roofs, rear seats, windshields and oversized tires can change loading clearance.

Contractors can configure an 8.5×16 with:

• ✓Ladder racks
• ✓Shelving
• ✓Cabinets
• ✓Workbench
• ✓Tool storage
• ✓E-Track
• ✓Additional outlets
• ✓Interior LED lights
• ✓Exterior scene lights
• ✓Generator preparation
• ✓Roof ventilation

The 16-foot length provides working space without moving into a substantially longer trailer.

An enclosed lawn-care configuration may carry:

• ✓Zero-turn mower
• ✓Push mower
• ✓Trimmers
• ✓Blowers
• ✓Fuel containers
• ✓Hand tools
• ✓Parts and supplies

Plan the layout before ordering racks or shelving. The largest mower must clear the rear opening and interior fender boxes.

An 8.5×16 can serve as the foundation for certain concession and mobile-business builds.

Possible equipment includes:

• ✓Concession windows
• ✓Service counters
• ✓Cabinets
• ✓Sinks
• ✓Water tanks
• ✓Electrical panel
• ✓Shore-power connection
• ✓Generator connection
• ✓Air conditioning
• ✓Interior lighting
• ✓Appliances

Equipment weight, local regulations and workspace requirements should be determined before construction.

Do not choose an 8.5×16 based only on its advertised size.

Measure the cargo’s:

• ✓Length
• ✓Width
• ✓Height
• ✓Ground clearance
• ✓Wheelbase
• ✓Widest fixed point
• ✓Highest fixed point
• ✓Turning or loading clearance

Then compare those measurements with the trailer’s:

• ✓Interior length
• ✓Interior width
• ✓Interior height
• ✓Space between fender boxes
• ✓Rear-opening width
• ✓Clear rear-opening height
• ✓Ramp-door dimensions
• ✓Ramp capacity
• ✓Ramp angle
• ✓Header clearance
• ✓Side-door opening

Allow working room around the cargo. A piece of equipment that barely fits may be difficult to secure, inspect or unload.

The usable rear opening is normally smaller than the trailer’s exterior width and interior height.

Door framing, hinges, cables, springs, rear header and transition flap can affect clearance.

Measure the clear opening at its narrowest and lowest usable points.

Ramp angle matters for:

• ✓Low-clearance cars
• ✓Motorcycles
• ✓Zero-turn mowers
• ✓Toolboxes
• ✓Equipment with small casters
• ✓Lifted or lowered vehicles
• ✓Long-wheelbase equipment

A ramp flap or steel transition extension can help smooth the transition between the ground, ramp and trailer floor.

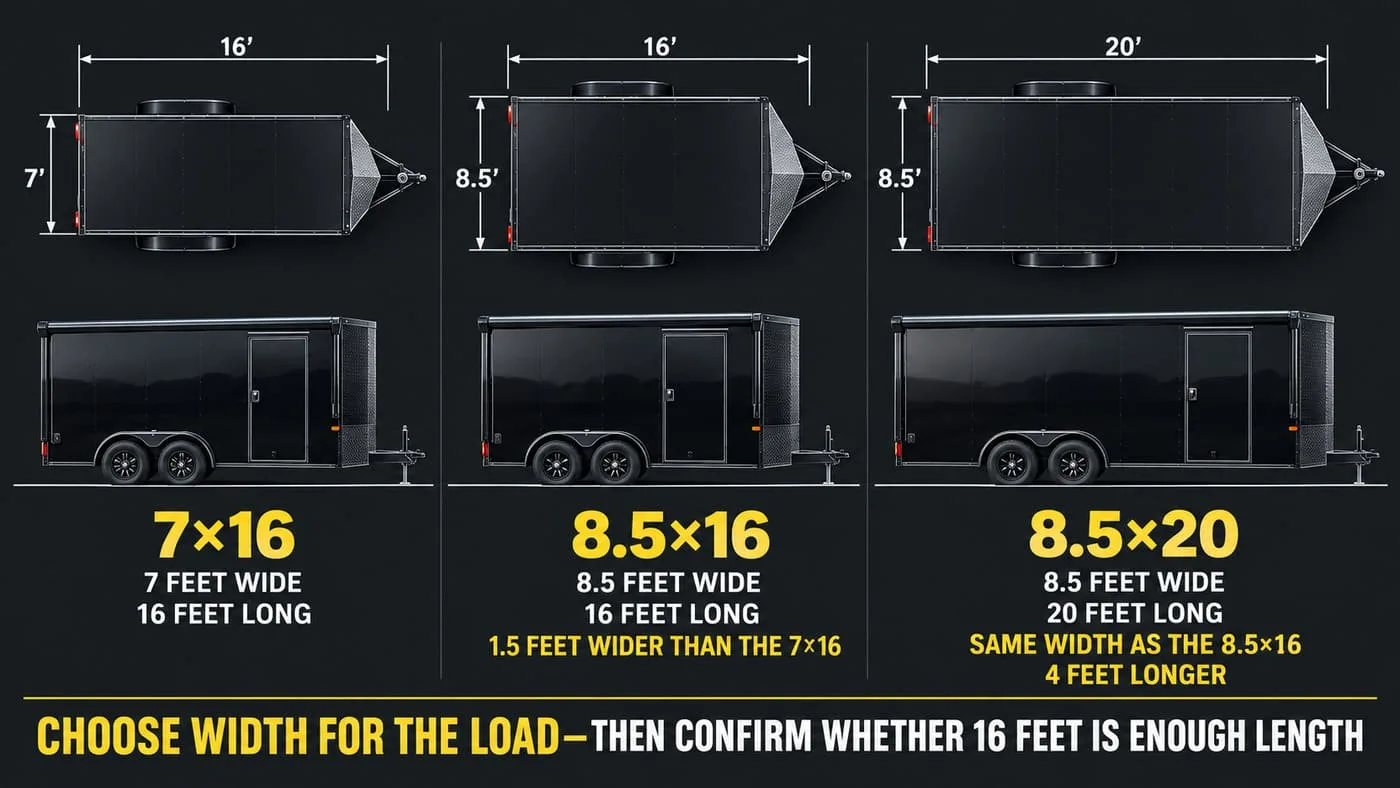

The best size depends on the cargo and required working space.

See the full 8.5×20 Enclosed Trailer Guide →

An 8.5×16 can be configured around the job rather than appearance alone.

Every option adds cost, and many options add weight. Build the trailer around its intended job and calculate the effect of permanent equipment on payload.

Before towing an 8.5×16, confirm:

• ✓Actual loaded trailer weight
• ✓Trailer GVWR
• ✓Tongue weight
• ✓Vehicle tow rating
• ✓Vehicle payload capacity
• ✓Gross combined weight rating
• ✓Receiver rating
• ✓Ball-mount rating
• ✓Hitch-ball rating
• ✓Correct hitch height
• ✓Brake-controller compatibility

Do not rely only on the vehicle’s advertised maximum tow rating. Passengers, cargo, accessories and trailer tongue weight also use the tow vehicle’s available payload.

The trailer should sit approximately level when loaded and connected.

Cargo placement must produce appropriate tongue weight without overloading the tow vehicle, receiver or hitch components.

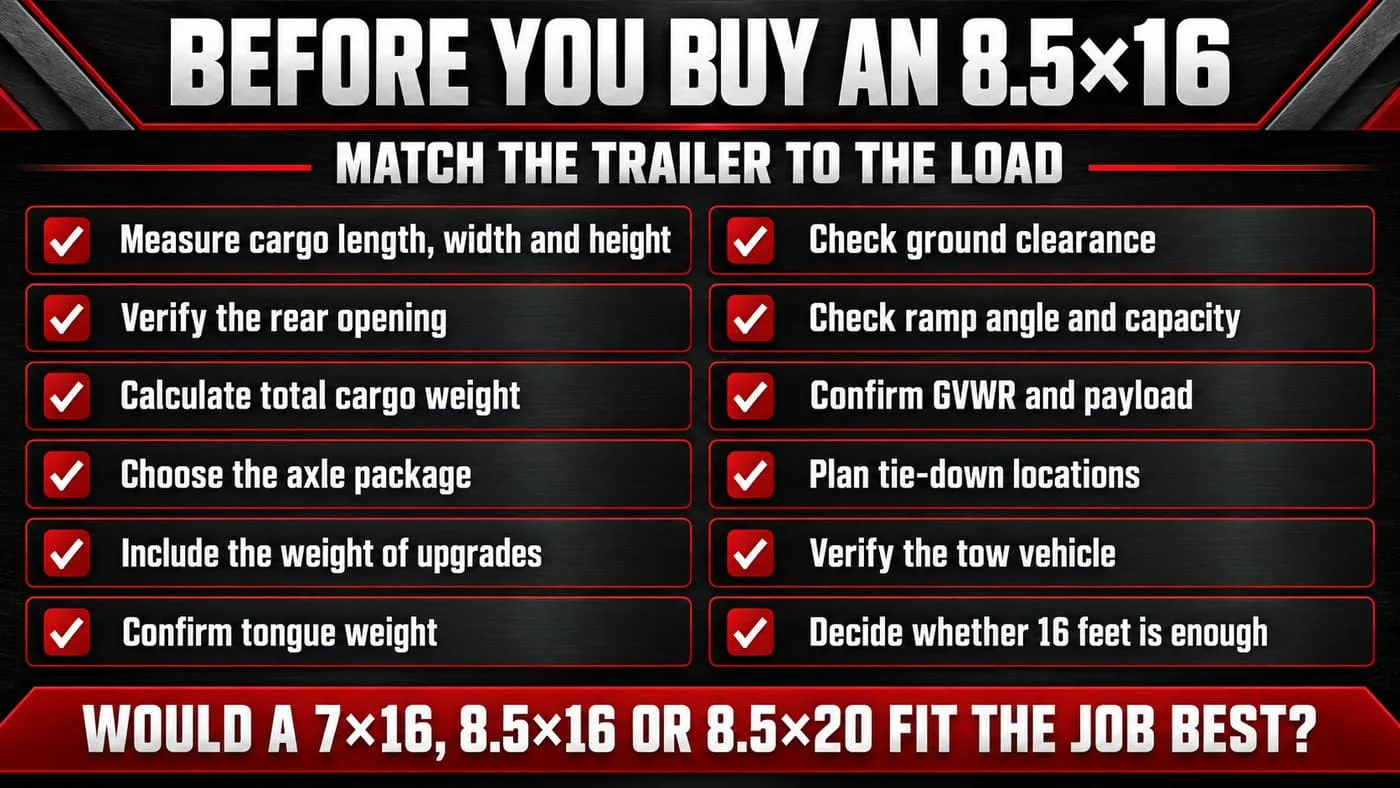

Use this checklist before selecting or ordering an 8.5×16:

• ✓Measure the cargo length
• ✓Measure the cargo width
• ✓Measure the cargo height
• ✓Check ground clearance
• ✓Confirm the clear rear-opening width
• ✓Confirm the clear rear-opening height
• ✓Check the ramp angle
• ✓Confirm ramp-door capacity
• ✓Calculate total cargo weight
• ✓Include tools, supplies, fuel and equipment
• ✓Confirm trailer GVWR
• ✓Verify actual empty weight
• ✓Calculate available payload
• ✓Choose the appropriate axle package
• ✓Verify tire and wheel ratings
• ✓Plan tie-down locations
• ✓Include the weight of upgrades
• ✓Confirm tow-vehicle ratings
• ✓Calculate expected tongue weight
• ✓Decide whether 16 feet is enough length
• ✓Determine whether a 7×16 or 8.5×20 would fit the job better

MATCH THE TRAILER TO THE LOAD

Ready to shop? Visit our Shop 8.5×16 Enclosed Trailers for Sale page, or browse Southern Trailer Depot’s current selection of 8.5x16 enclosed cargo trailers for sale to compare available trailers, features and configurations. If you don’t see exactly what you need, our team can also help you find or configure a custom enclosed cargo trailer.

Explore all Enclosed Cargo Trailers for Sale at Southern Trailer Depot to compare additional sizes and configurations.

An 8.5×16 enclosed trailer can provide a strong balance of cargo width, usable floor space and manageable overall length.

The best configuration depends on:

• ✓What you are carrying
• ✓Cargo dimensions
• ✓Total cargo weight
• ✓Required payload
• ✓Loading method
• ✓Axle package
• ✓Door configuration
• ✓Tie-down locations
• ✓Interior equipment
• ✓Electrical needs
• ✓Tow vehicle

Southern Trailer Depot can help you compare available 8.5×16 trailers or plan a custom build around your cargo and intended use.

From standard cargo trailers to motorcycle, contractor, concession and mobile-business configurations, we can help you select the size and options that fit the job.
